TS3USB221AQRSERQ1
Manufacturer:
Texas Instruments
Mfr.Part #:
TS3USB221AQRSERQ1
Datasheet:
Description:

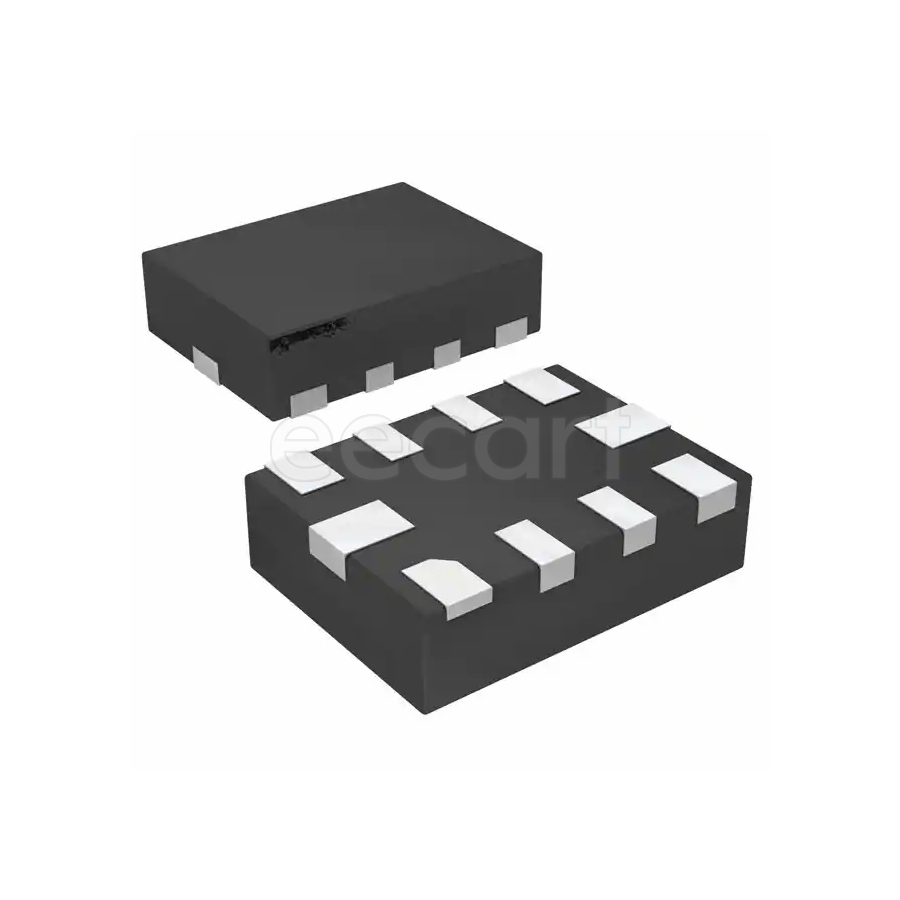

USB Interface ICs UQFN-10 SMD/SMT 480 Mbps
| Parameter | Value |
|---|---|
| Length | 1.5 mm |
| Width | 2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Resistance | 6 Ω |
| Height | 600 µm |
| Thickness | 0.55 mm |
| Radiation Hardening | No |
| Contact Plating | Gold |
| Bandwidth | 900 MHz |
| Operating Supply Voltage | 3 V |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.3 V |
| Number of Channels | 2 |
| Turn-On Delay Time | 12 ns |
| Turn-Off Delay Time | 30 ns |
| Operating Supply Current | 30 µA |
| High Level Output Current | 120 mA |
| Low Level Output Current | 120 mA |
| Number of Inputs | 4 |
| Data Rate | 480 Mbps |
| Supply Type | Single |
| Number of Outputs | 2 |
| Nominal Supply Current | 30 µA |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.59024
Ext.Price$0.59024
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59024 | $0.59024 |
| 10 | $0.48685 | $4.86850 |
| 25 | $0.43581 | $10.89525 |
